ledboX core

LED linear recessed luminaire

TOP-LINE


Pure minimalism

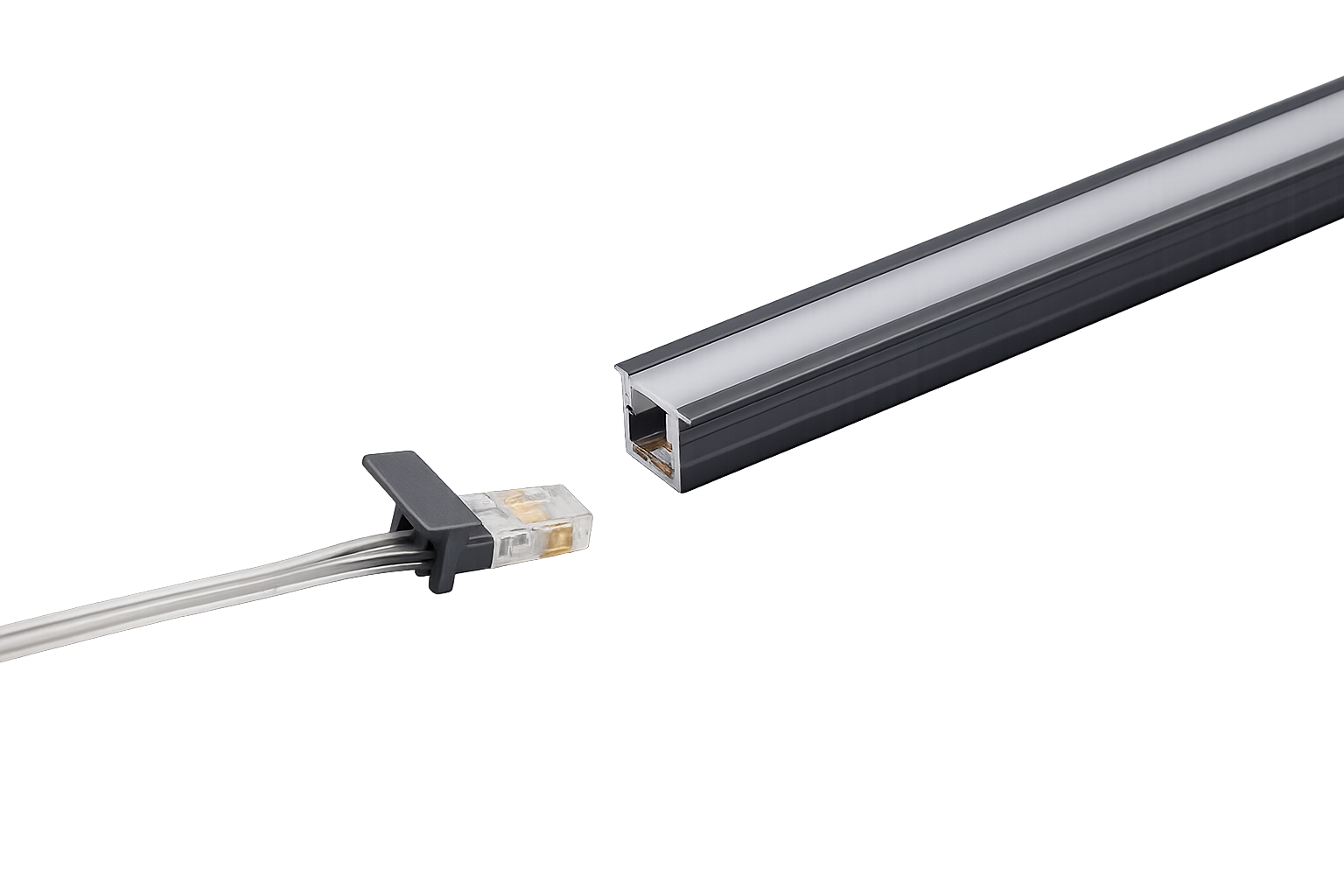

The TOP-LINE linear recessed luminaire stands for maximum design freedom with uncompromising aesthetics. Thanks to FreeCut, the luminaire can be shortened to the millimetre at any desired point – perfect for individual installation situations. UniFeed makes installation easier than ever: the Quick-Connect feeder works on both the right and left sides, regardless of polarity. The absolute highlight is the internal Quick-Connect feeder, which allows use without end caps and without dark zones – for a continuous, homogeneous line of light down to the last millimetre. Despite its minimalist dimensions, there are no visible LED spots, even when dimmed.




  • Product features

  • Voltage: 12 volt
    Power: 10 watt per meter
    Light output: 900 lm / meter
    Light color: warm white (3000K)
    Color rendering index: Ra (CRI) >90
    Beam angle: 120°
    Lifespan (t70): 20.000 h
    UniFeed: feed-in (left or right)




  • Scope of delivery

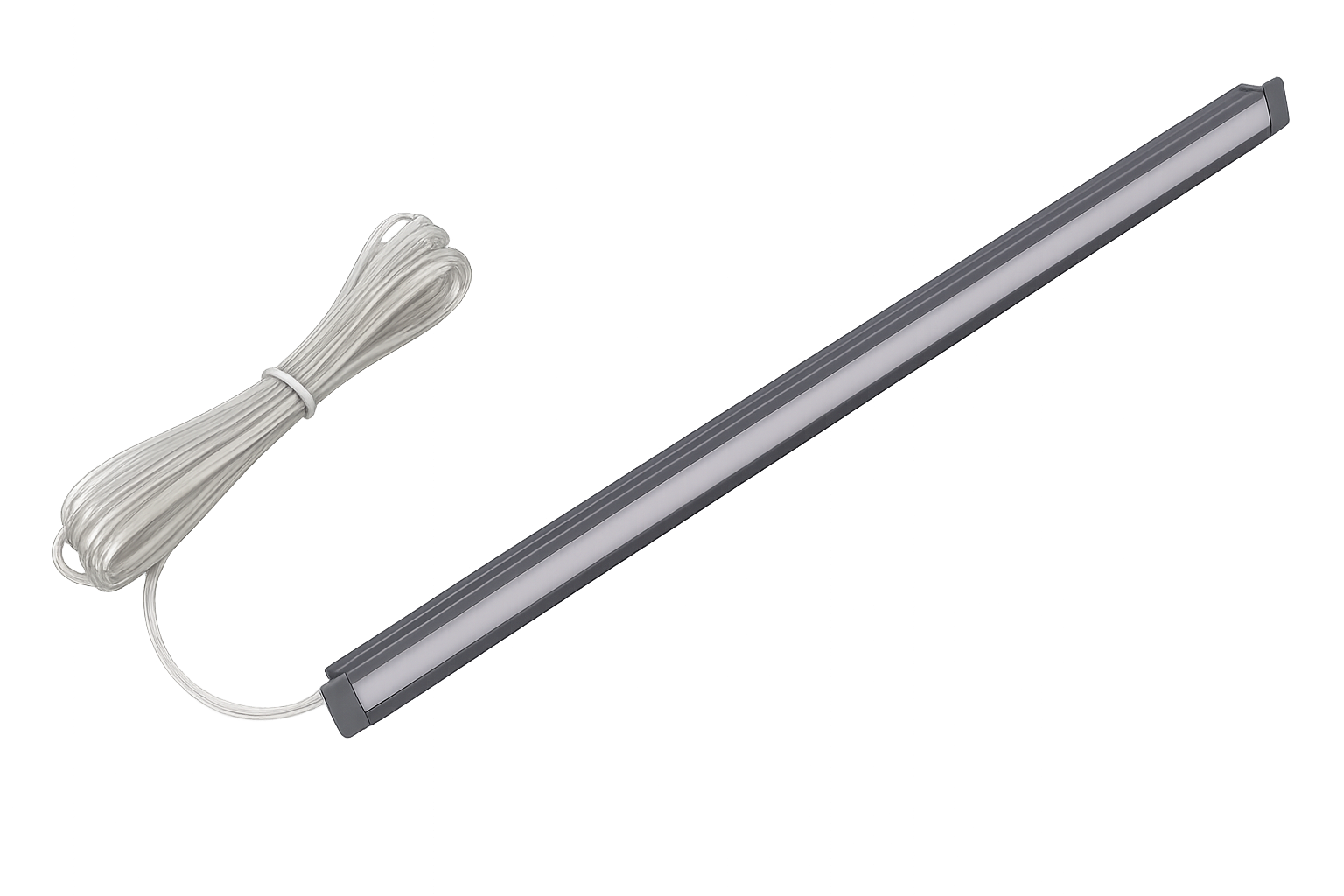

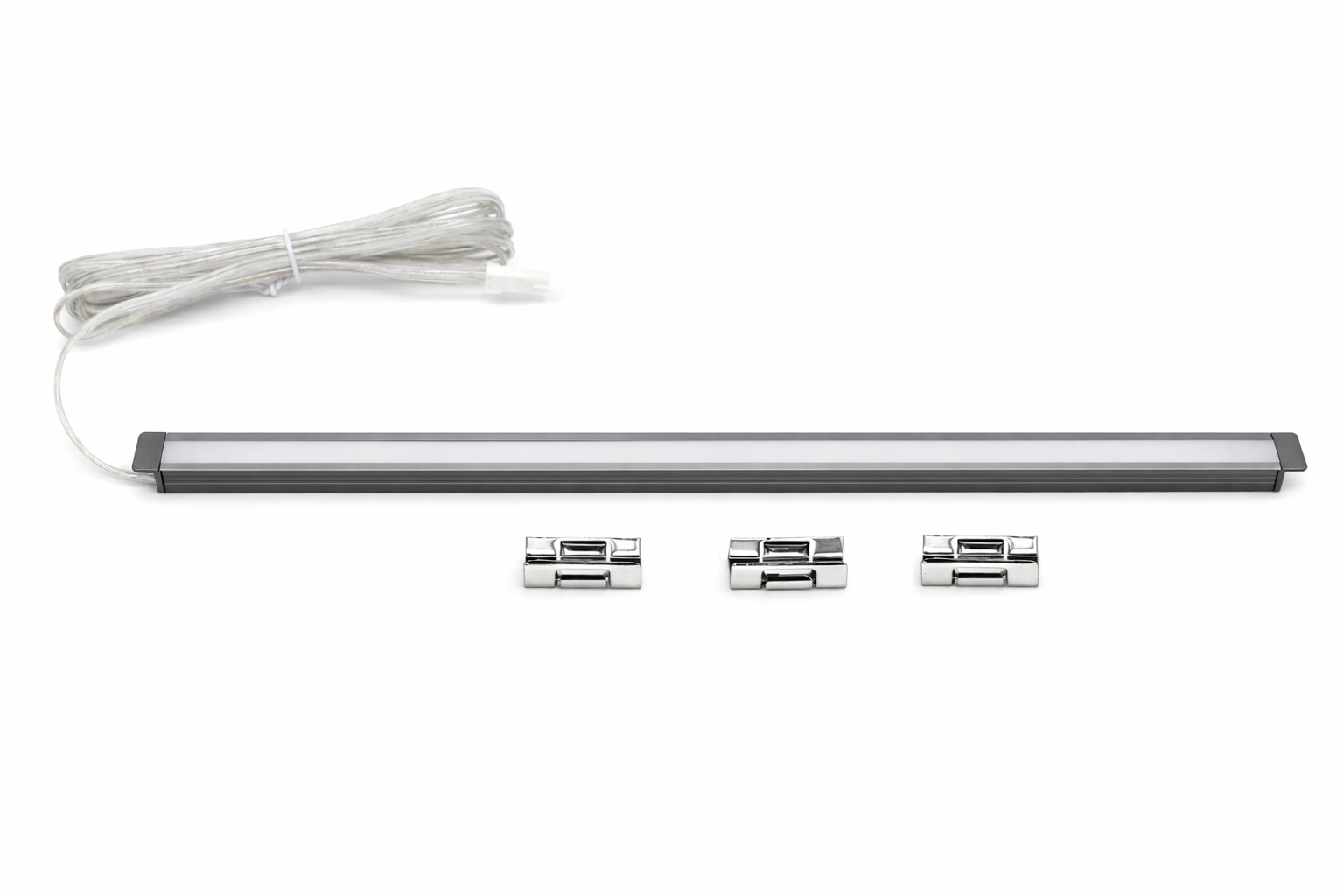

  • • Linear recessed luminaire with 2000 mm connection cable
    • Mounting clips (3 x Variant 1500 mm. 5 x Variant 2500 mm)

  • Product information - Download

  • Product data sheet

  • Profile dimensions

  • Further dimensions can be found in our product data sheet.

  • Accessories (optional)

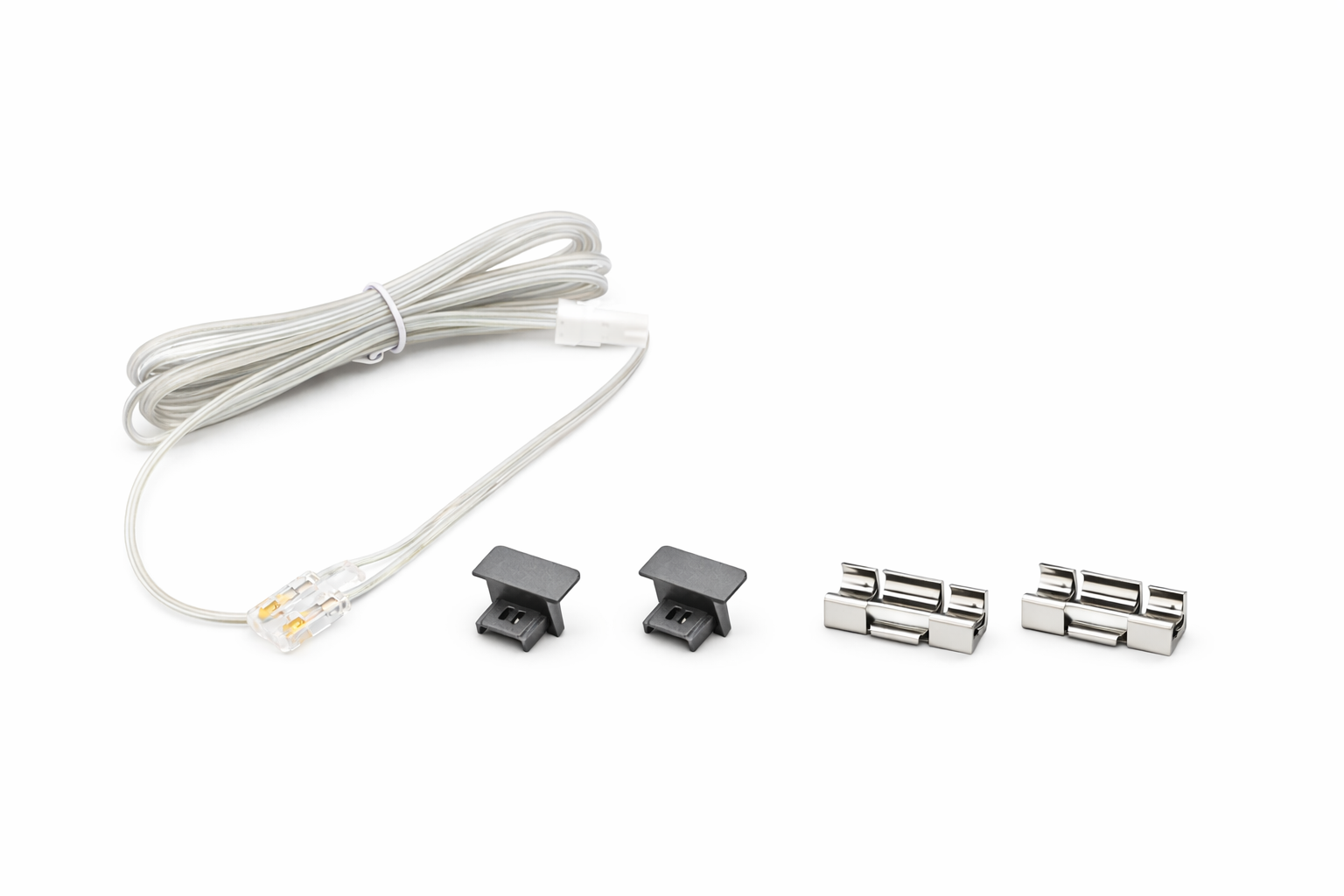

  • Lighting assembly kit consisting of:
    • 1 x Quick-Connect feeder with 2000 mm connection cable
    • 2 x End caps
    • 2 x Mounting clips

    Light connector

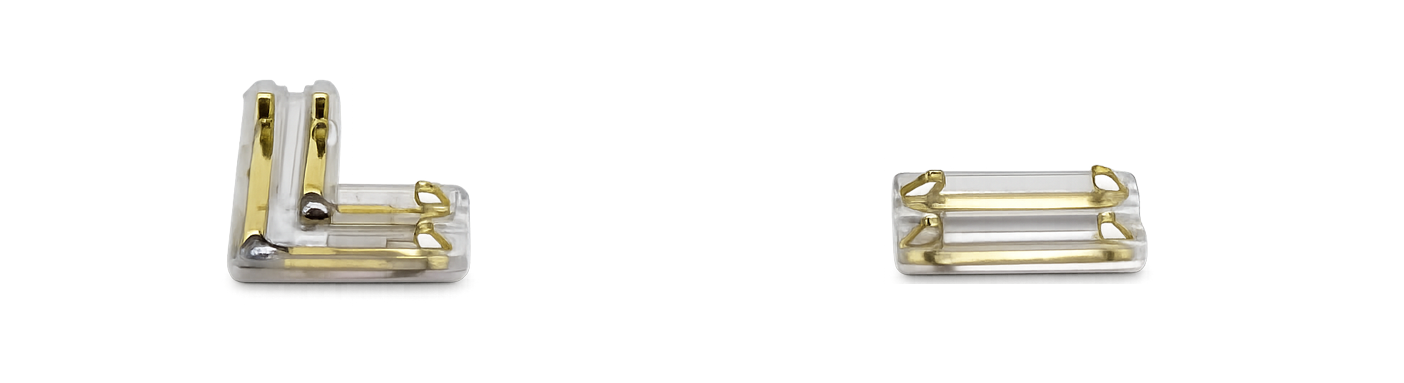

    • Corner connector 90°
    • Linear connector

  • Order information

  • Article mid grey,
    warm white
    TOP-LINE E L=1500mm, 15 watt 519539
    TOP-LINE E L=2500mm, 25 watt 519541
    Lighting assembly kit 526231
    Article black,
    warm white
    TOP-LINE E L=1500mm, 15 watt 519540
    TOP-LINE E L=2500mm, 25 watt 519542
    Lighting assembly kit 526232
    Article PU 20 piece
    Corner connector (TOP-LINE, SIDE-LINE) 506805
    Linear connector (TOP-LINE, SIDE-LINE) 506806

TOP-LINE – Customised for your project


Our TOP-LINE is available in two standard lengths and can be adjusted on site to your exact requirements. On request, we can take care of the entire assembly process for you – including matching accessories, delivered ready for installation.
Send us your desired dimensions. We will customize your TOP-LINE to your project and deliver it ready for installation.
Start project
Configure your individual dimensions and accessories conveniently online with our product configurator.
Request access
