ledboX core

LED linear recessed luminaire

SIDE-LINE


Pure flexibility

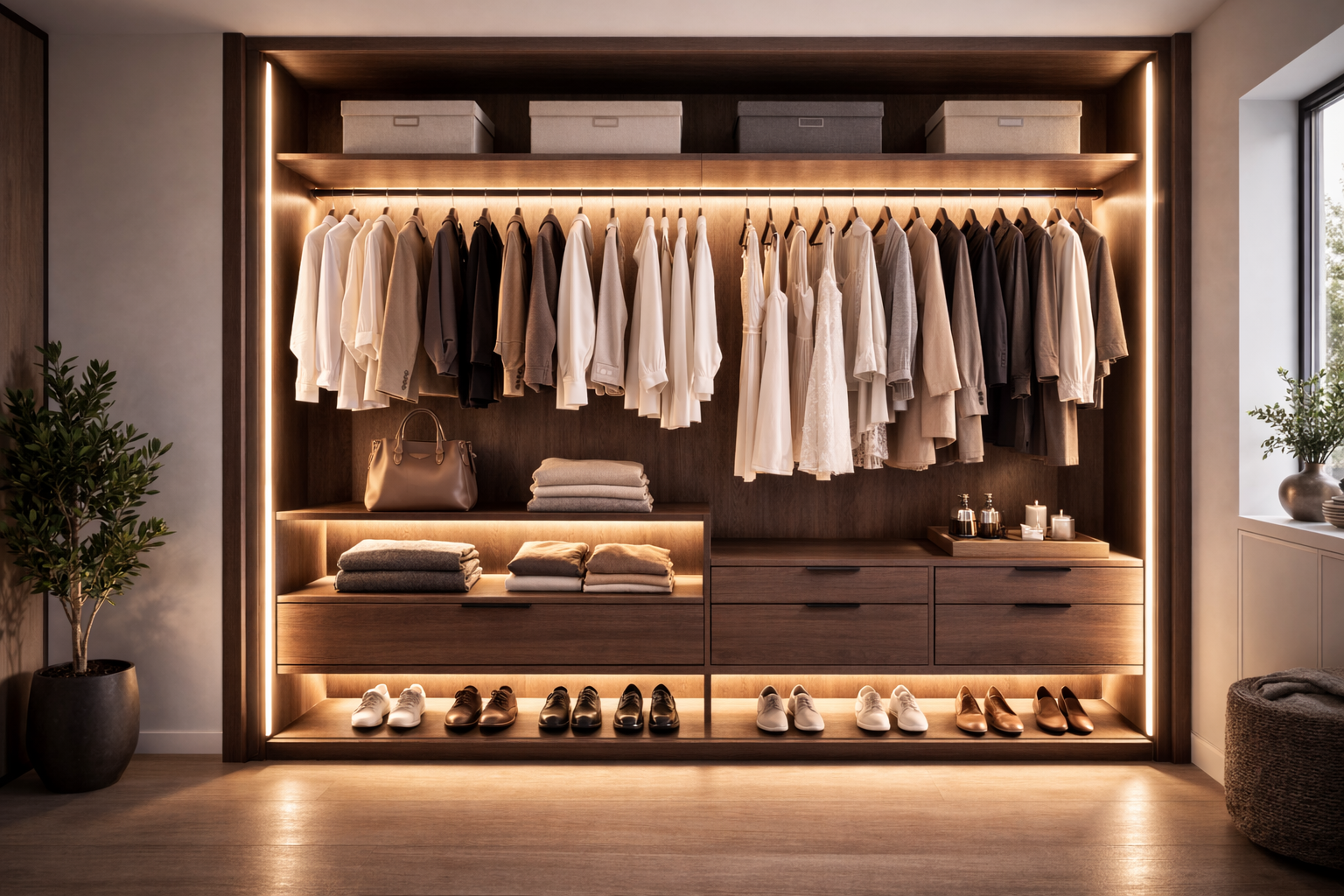

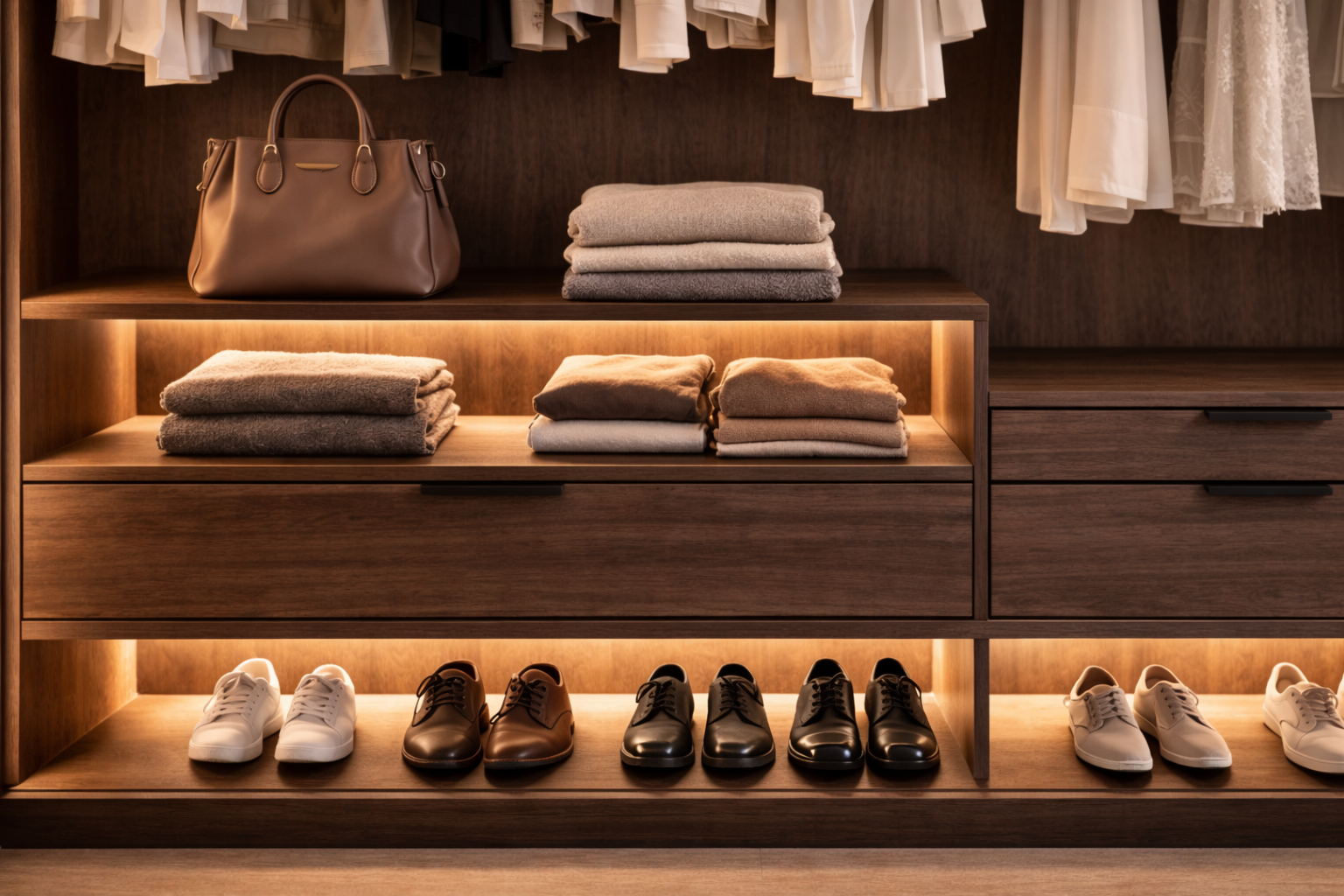

The SIDE-LINE linear recessed luminaire is the ideal solution for uniform, functional interior lighting of cabinets and furniture. The special alignment of the light diffuser directs the light specifically into the cabinet, ensuring homogeneous illumination of the interior surfaces. A particular highlight is its use with or without end caps: in combination with the internal Quick-Connect feeder, a continuous line of light is created without any dark zones – for clean, professional lighting solutions down to the last millimetre. Thanks to UniFeed, the SIDE-LINE offers maximum flexibility during installation. The luminaire can be used on the right or left, and the power supply can be connected from above or below – simply by reconnecting the Quick-Connect feeder, without regard to polarity.




  • Product features

  • Voltage: 12 volt
    Power: 10 watt per meter
    Light output: 900 lm / meter
    Light color: warm white (3000K)
    Color rendering index: Ra (CRI) >90
    Beam angle: 120°
    Lifespan (t70): 20.000 h
    UniFeed: feed-in (left or right)




  • Scope of delivery

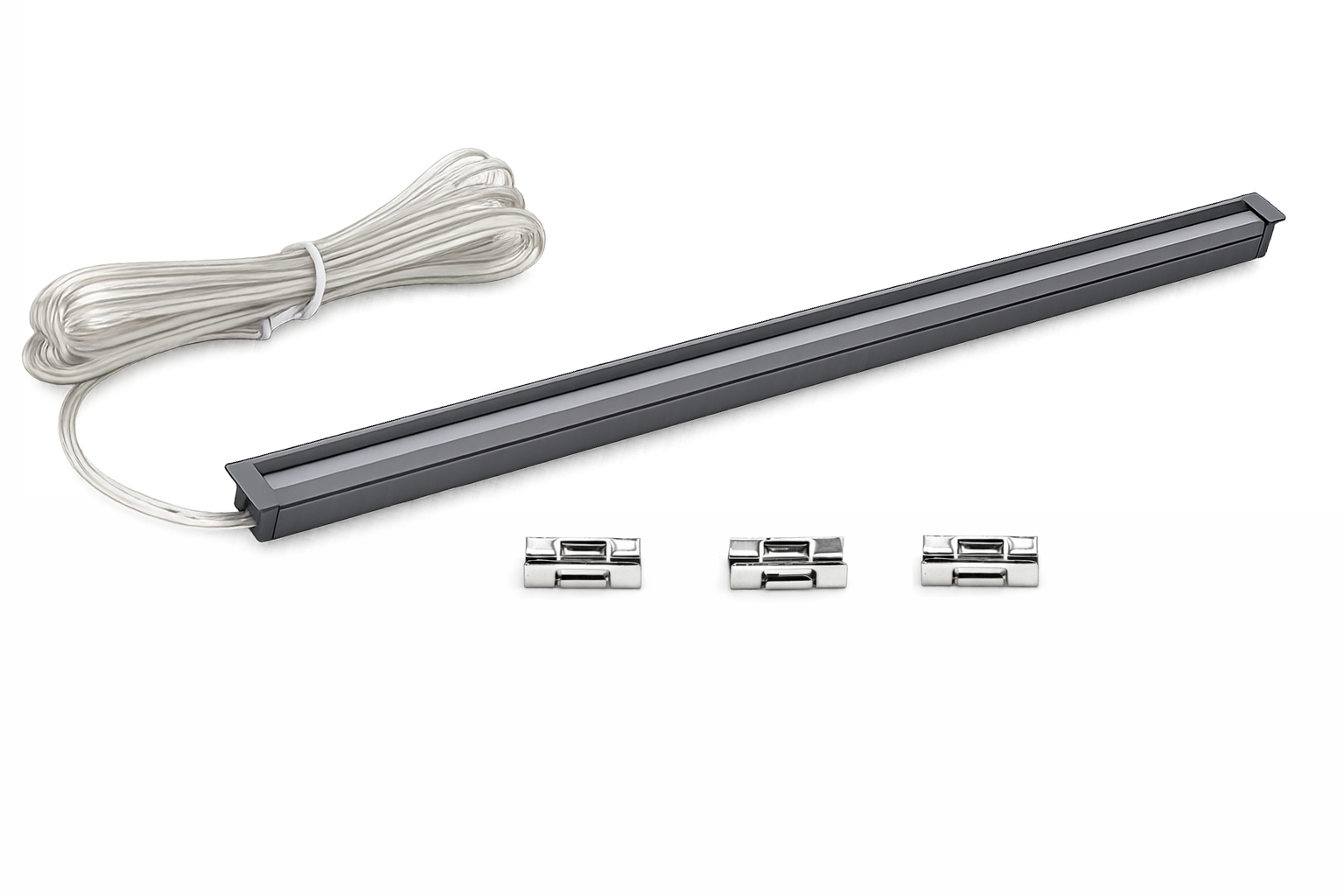

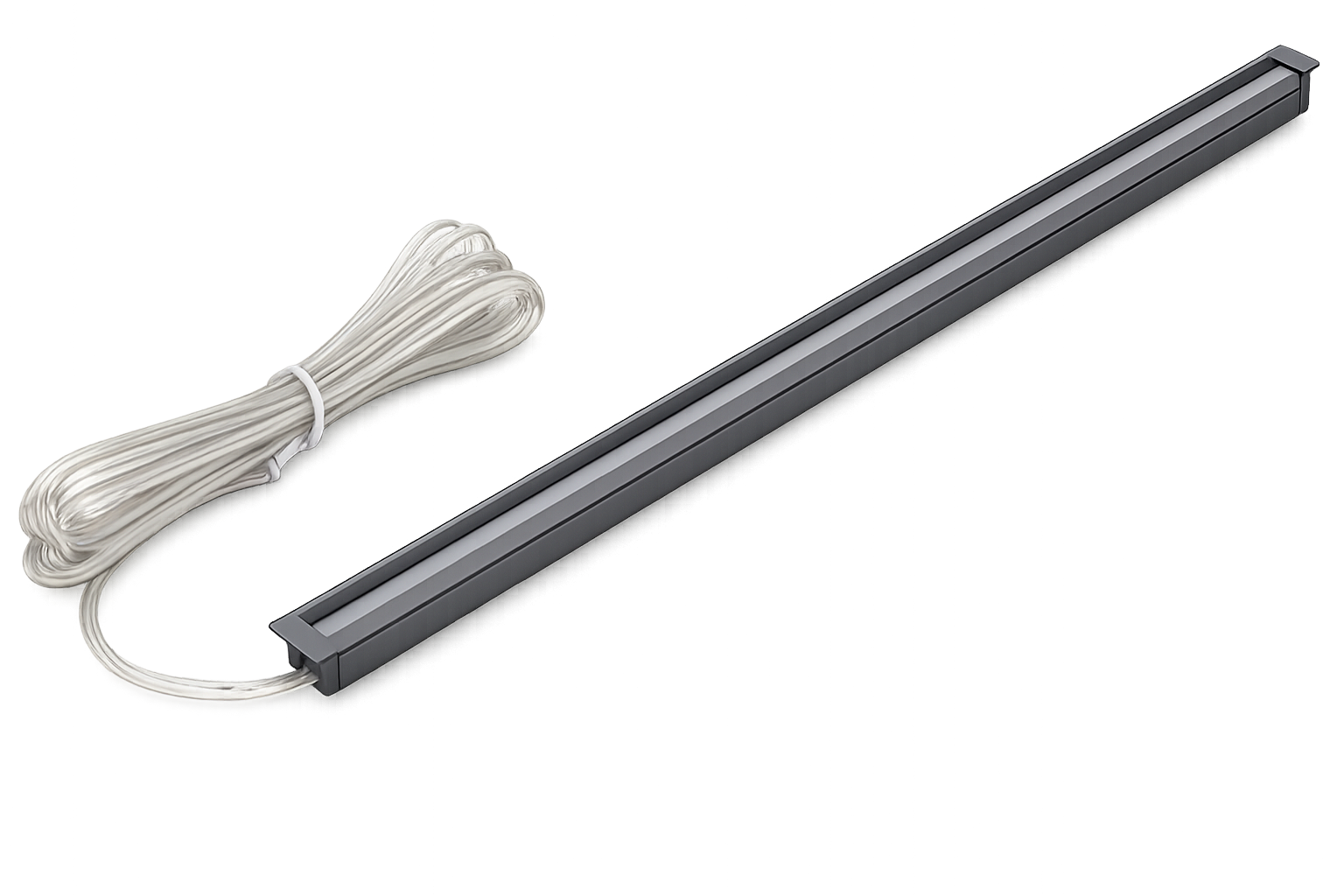

  • • Linear recessed luminaire with 2000 mm connection cable
    • Mounting clips (3 x Variant 1500 mm. 5 x Variant 2500 mm)

  • Product information - Download

  • Product data sheet

  • Profile dimensions

  • Further dimensions can be found in our product data sheet.

  • Accessories (optional)

  • Lighting assembly kit consisting of:

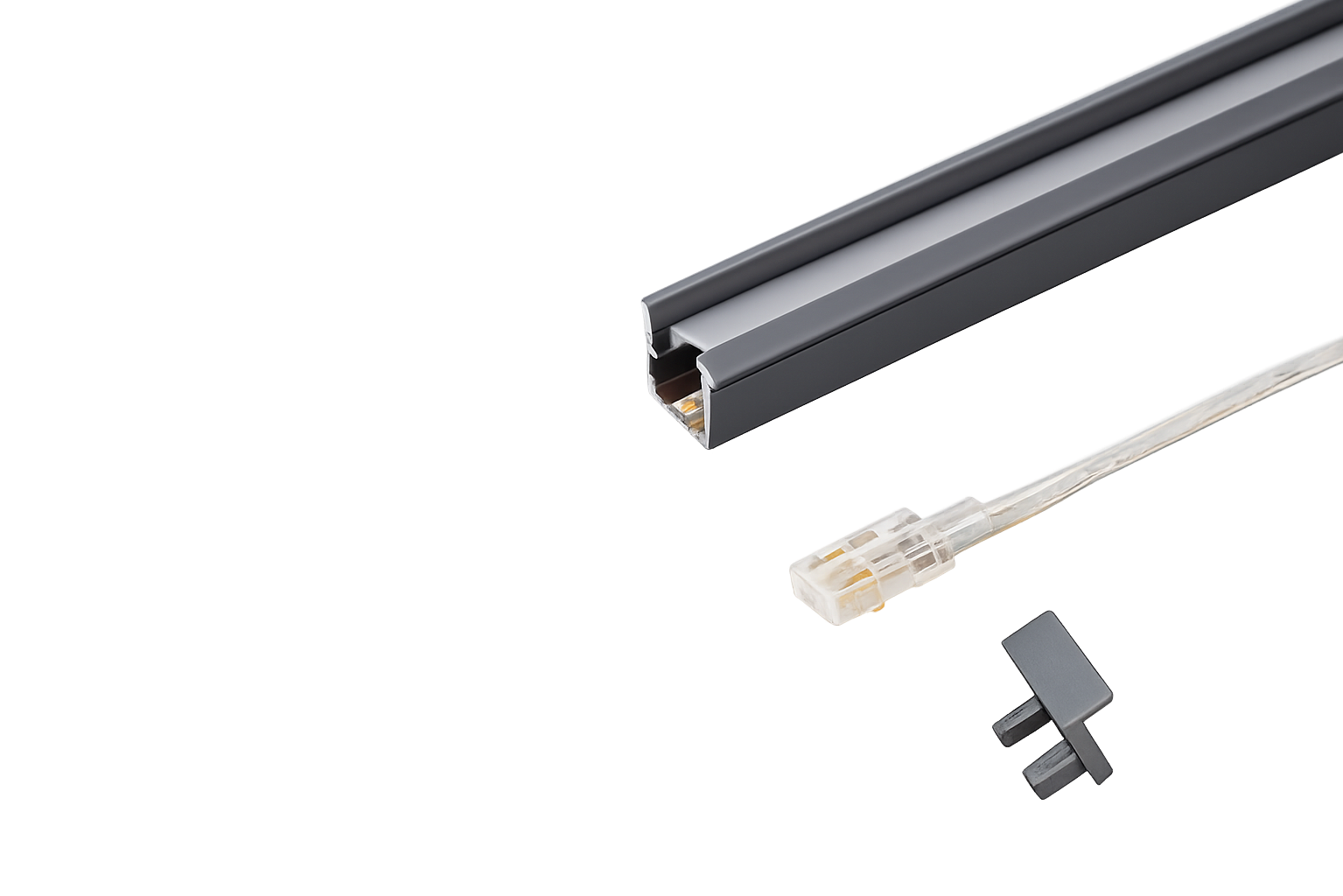

    • 1 x Quick-Connect feeder with 2000 mm connection cable
    • 2 x End caps
    • 2 x Mounting clips

    Light connector

    • Corner connector 90°
    • Linear connector

  • Order information

  • Article mid grey,
    warm white
    SIDE-LINE E L=1500mm, 15 watt 519543
    SIDE-LINE E L=2500mm, 25 watt 519545
    Lighting assembly kit 526233
    Article black,
    warm white
    SIDE-LINE E L=1500mm, 15 watt 519544
    SIDE-LINE E L=2500mm, 25 watt 519546
    Lighting assembly kit 526243
    Article PU 20 piece
    Corner connector (TOP-LINE, SIDE-LINE) 506805
    Linear connector (TOP-LINE, SIDE-LINE) 506806

SIDE-LINE – Customised for your project


Our SIDE-LINE is available in two standard lengths and can be adjusted on site to your exact requirements. On request, we can take care of the entire assembly process for you – including matching accessories, delivered ready for installation.
Send us your desired dimensions. We will customize your SIDE-LINE to your project and deliver it ready for installation.
Start project
Configure your individual dimensions and accessories conveniently online with our product configurator.
