ledboX core

LED glass edge lighting

GLAS-LINE


Light for clear lines

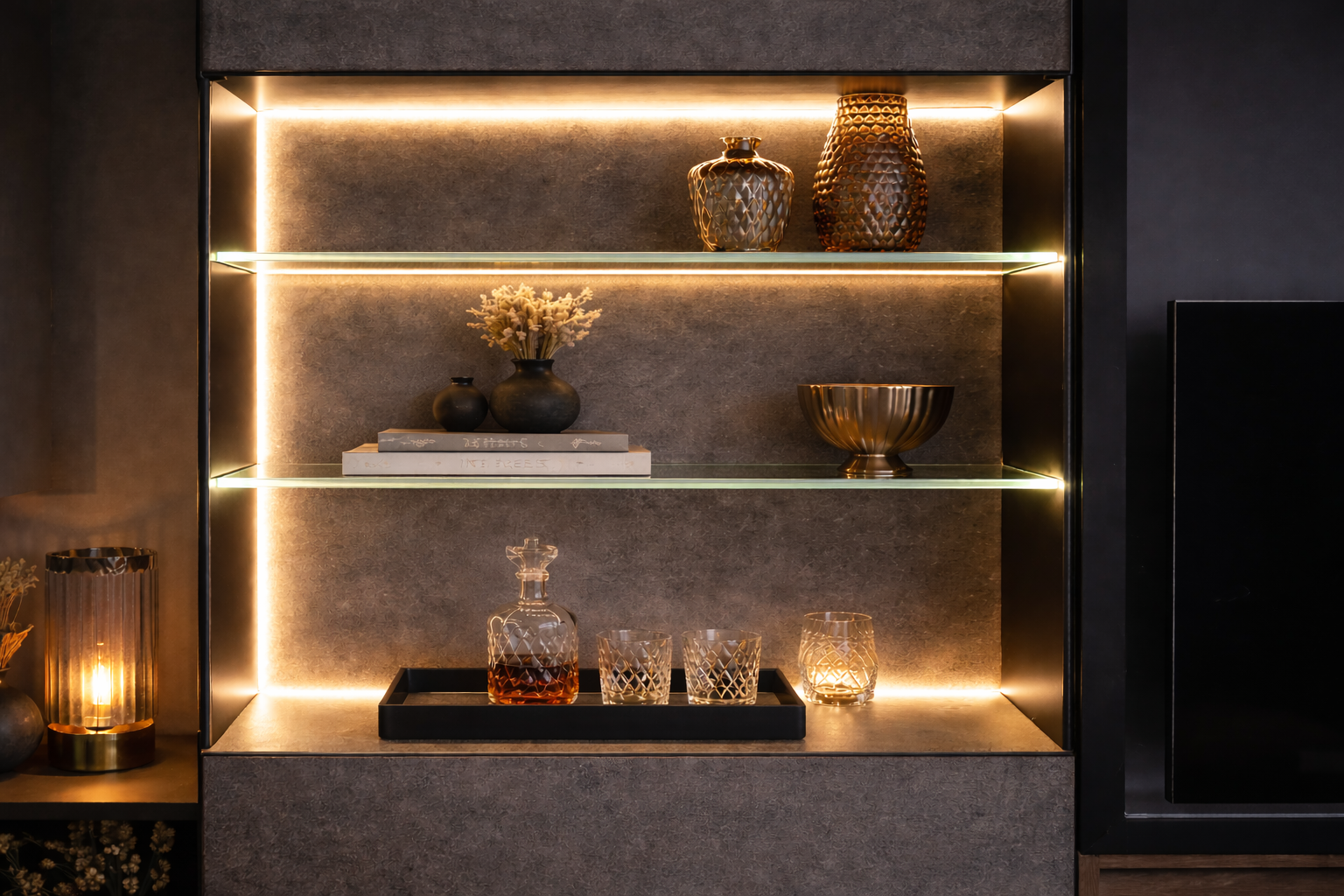

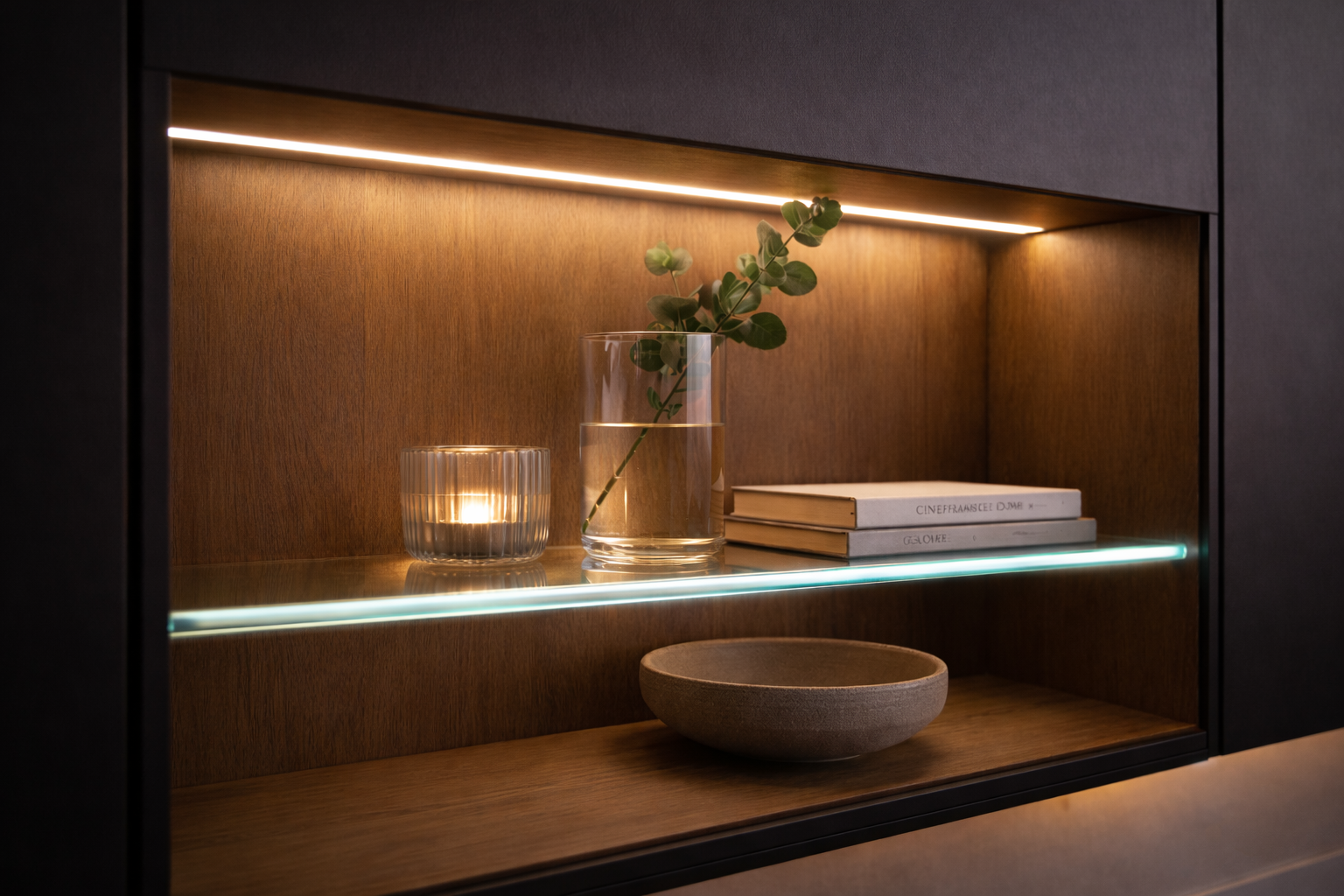

GLAS-LINE linear glass edge lighting has been specially developed for the precise and uniform illumination of glass edges. Its slim, understated design blends discreetly into high-quality applications and effectively showcases glass surfaces. The luminaire can be shortened individually, offering maximum flexibility for adaptation to different glass formats and installation situations. The homogeneous light is coupled directly into the glass edge, ensuring uniform, elegant light distribution without visible light points.



  • Product features

  • Voltage:: 12 volt
    Power: 10 watt per meter
    Light output: 900 lm / meter
    Light color: warm white (3000K)
    Color rendering index Ra (CRI) >90
    Lifespan (t70): 20.000 h
    Glass bottom thickness: 8 mm
    UniFeed: feed-in (left or right)




  • Scope of delivery

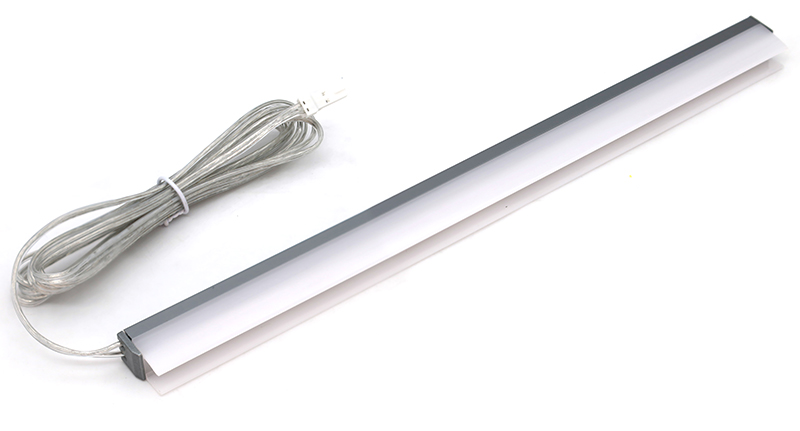

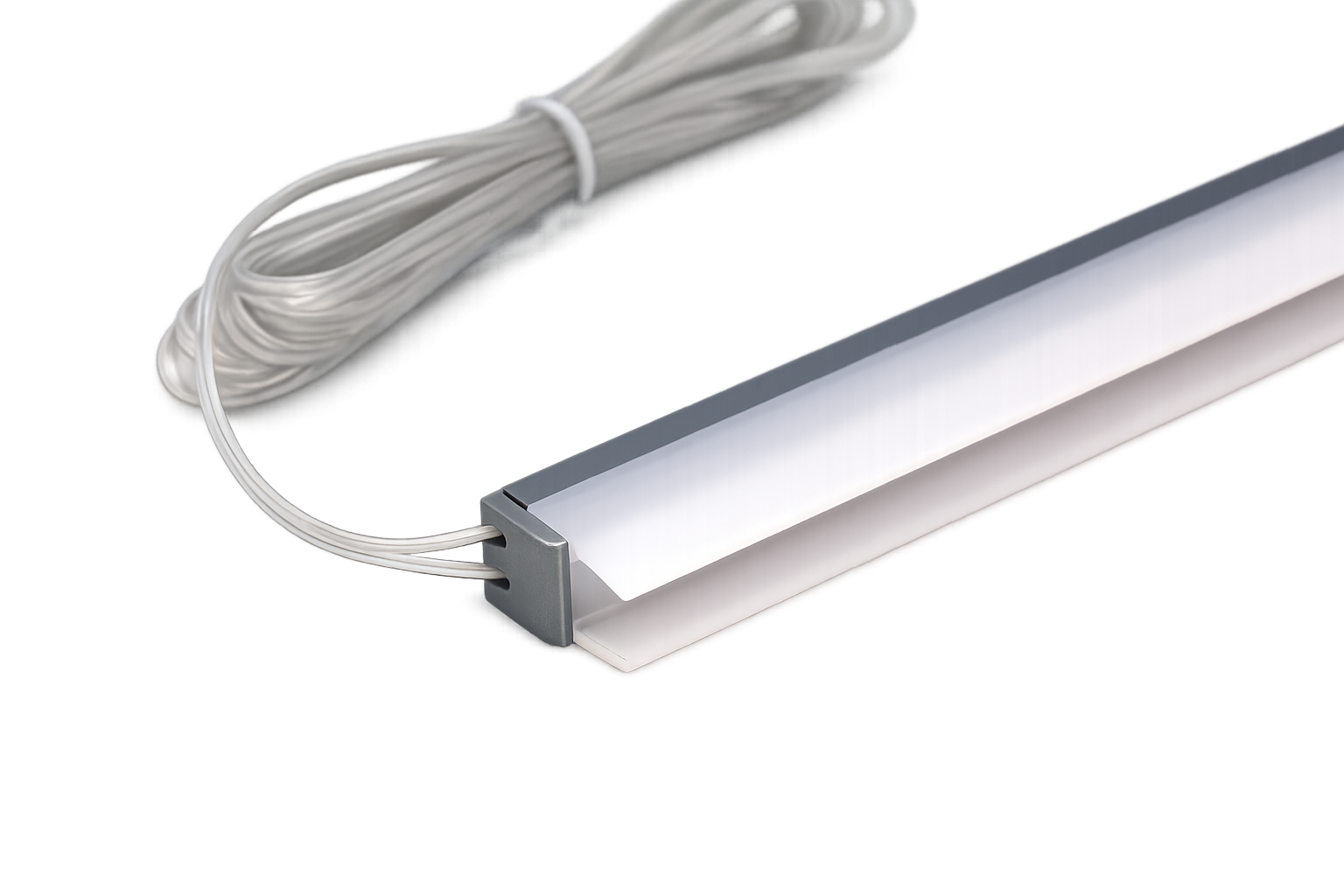

  • • Linear glass edge lighting with 2000 mm connection cable

  • Product information - Download

  • Product data sheet

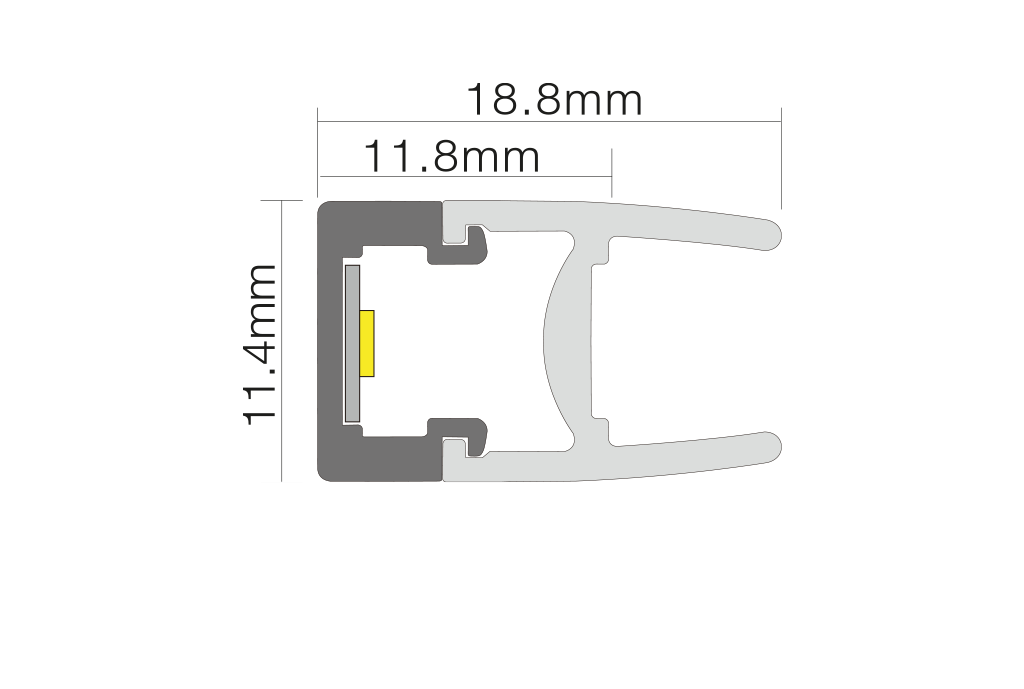

  • Profile dimensions

  • Further dimensions can be found in our product data sheet.

  • Accessories (optional)

  • Lighting assembly kit consisting of:

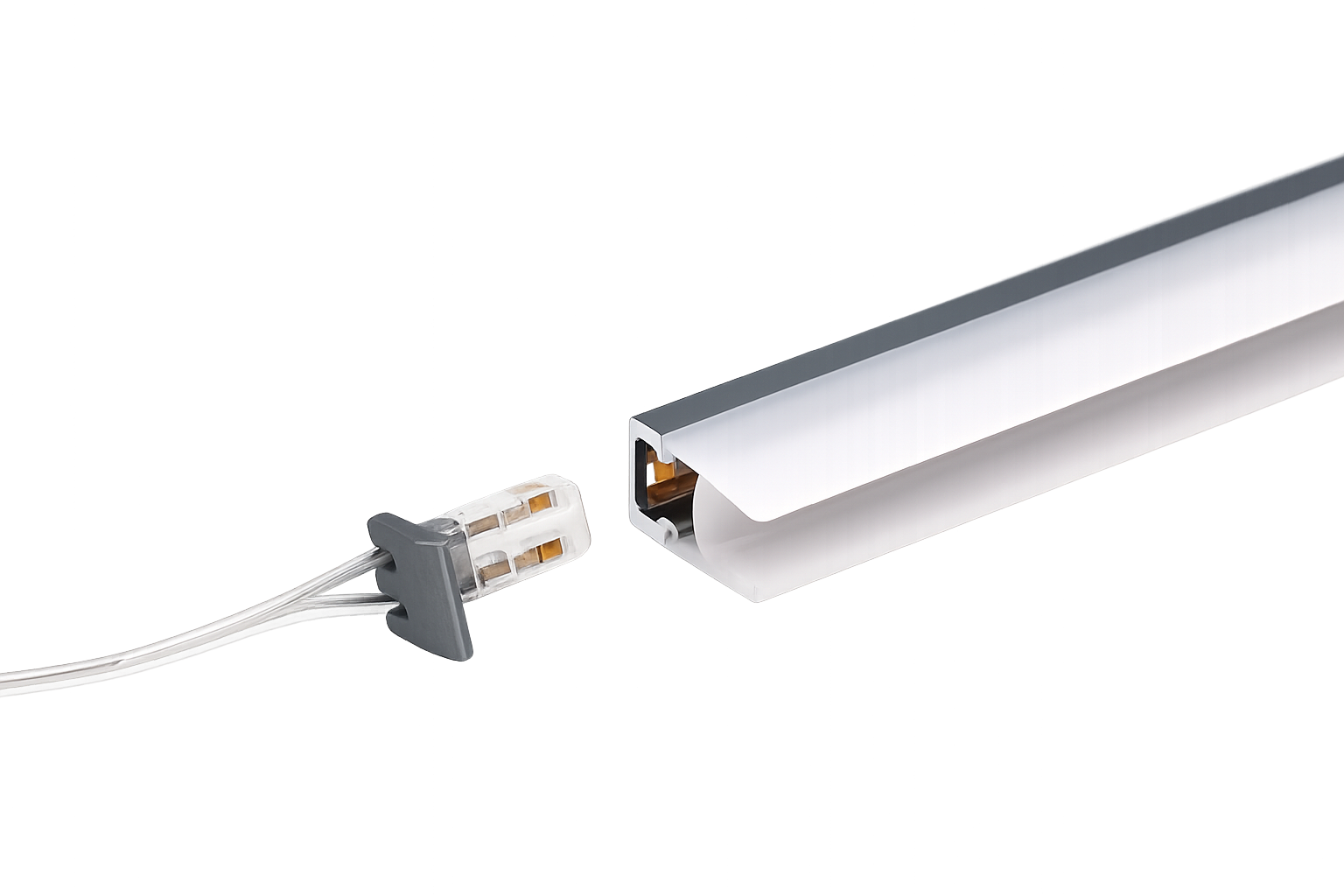

    • 1 x Quick-Connect feeder with 2000 mm connection cable
    • 2 x End caps

  • Order information

  • Article mid grey,
    warm white
    GLAS-LINE E L=1500mm, 15 watt 519547
    GLAS-LINE E L=2500mm, 25 watt 519549
    Lighting assembly kit 526235
    Article black,
    warm white
    GLAS-LINE E L=1500mm, 15 watt 519548
    GLAS-LINE E L=2500mm, 25 watt 519550
    Lighting assembly kit 526236

GLAS-LINE – Customised for your project


Our GLAS-LINE is available in two standard lengths and can be adjusted on site to your exact requirements. On request, we can take care of the entire assembly process for you – including matching accessories, delivered ready for installation.
Send us your desired dimensions. We will customize your GLAS-LINE to your project and deliver it ready for installation.
Start project
Configure your individual dimensions and accessories conveniently online with our product configurator.
Request access
